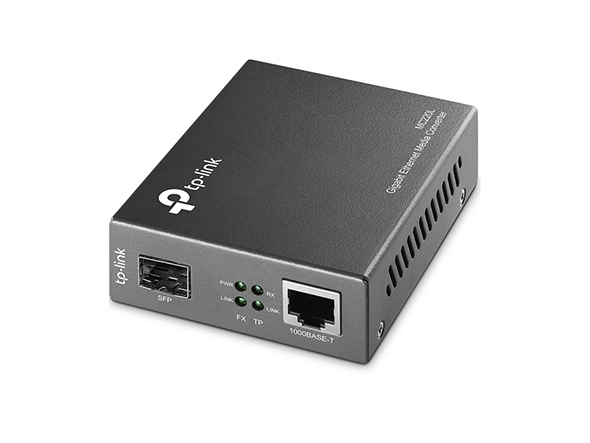

Bộ chuyển đổi quang điện Gigabit TP-Link MC220L
Complies with IEEE 802.3ab and IEEE 802.3z
FX port supports hot-swappable
Extends fiber distance up to 0.55km for multi-mode fiber and 10km for single-mode fiber
| Chuẩn và Giao thức | IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |
|---|---|
| Tính năng cơ bản | Full Duplex Flow Control (IEEE 802.3x) Extends fiber distance up to 0.5km using 50/125um fiber |
| Ports | 1 Gigabit SFP port 1 1000M RJ45 port (Auto MDI/MDIX) |
| Wave Length | Depends on the used SFP module |
| Network Media 1000BASE-X | Multi-mode/Single-mode SFP module |
| Network Media 1000BASE-T | UTP category 5, 5e, 6 cable (maxium 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| LED Indicators | PWR, LINK, RX |
| Kích thước (R*D*C) | 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm) |
| Power Supply | External Power Adapter |
| Max Power Consumption | 3.95W |
| Safety & Emission | FCC, CE |
| Môi trường | Operating Temperature: 0~40 (32~104) Storage Temperature: -40~70 (-40~158) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
