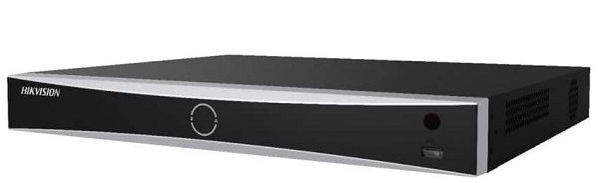

Đầu ghi hình camera IP 16 kênh HIKVISION DS-7616NXI-K2/16P
- Hỗ trợ 16 kênh IP camera đầu vào, plug&play với 16 giao diện Power-Over-Ethernet (PoE).
- Chuẩn nén video: H.265+/H.265/H.264+/H.264.
- Tương thích với tín hiệu ngõ ra: 1-ch HDMI, 1-ch VGA.
- Hỗ trợ 2 khe cắm ổ cứng SATA (dung lượng 10TB mỗi ổ).
- Cổng Alarm: 4 In/1 Out.
- Face picture comparison: 4 kênh (khi dùng camera face capture).
- Hỗ trợ tìm kiếm bằng khuôn mặt.
- Thư viện ảnh khuôn mặt: lên đến 16 thư viện với 20,000 ảnh (mỗi ảnh ≤ 4MB, tổng dung lượng ≤ 1 GB).
Thông số kỹ thuật
Intelligent Analytics | |
AI by Device | Facial recognition, perimeter protection, motion detection 2.0 |
AI by Camera | Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA |
Facial Recognition | |
Facial Detection and Analytics | Face picture comparison, human face capture, face picture search |
Face Picture Library | Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB) |
Facial Detection and Analytics | 1-ch, 8 MP |
Face Picture Comparison | 4-ch |
Motion Detection 2.0 | |
By Device | All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm |
By Camera | All channels |
Perimeter Protection | |
By Device | 2-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm |
By Camera | All channels |
Video and Audio | |
IP Video Input | 16-ch |
Incoming Bandwidth | 160 Mbps |
Outgoing Bandwidth | 160 Mbps |
HDMI Output | 1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
VGA Output | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
Video Output Mode | HDMI/VGA independent output |
Audio Output | 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
Two-Way Audio | 1-ch, RCA (Linear, 1 KΩ) |
Decoding | |
Decoding Format | H.265/H.265+/H.264+/H.264 |
Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Synchronous playback | 16-ch |
Decoding Capability | AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps) AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps) |
Stream Type | Video, Video & Audio |
Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC |
Network | |
Remote Connection | 128 |
API | ONVIF (profile S/G); SDK; ISAPI |
Compatible Browser | IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version |
Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
Network Interface | 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
PoE | |
Interface | 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
Power | ≤ 200 W |
Standard | IEEE 802.3af/at |
Auxiliary Interface | |
SATA | 2 SATA interfaces |
Capacity | Up to 10 TB capacity for each HDD |
USB Interface | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 |
Alarm In/Out | 4/1 |
General | |
GUI Language | English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian |
Power Supply | 100 to 240 VAC, 50 to 60 Hz |
Consumption | ≤ 15 W (without HDD and PoE off) |
Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
Working Humidity | 10% to 90% |
Dimension (W × D × H) | 385 mm × 315 mm × 52 mm |
Weight | ≤ 3 kg (without HDD, 6.6 lb. |
Certification | |
FCC | Part 15 Subpart B, ANSI C63.4-2014 |
CE | EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017 |
Obtained Certification | CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS |
