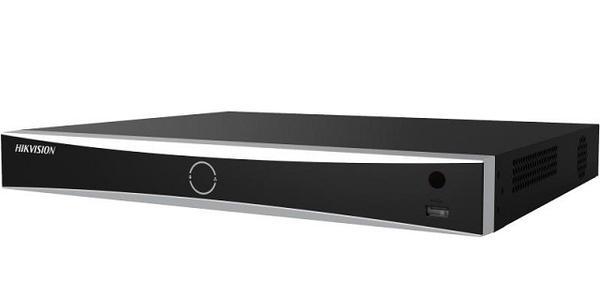

Đầu ghi hình camera IP 32 kênh HIKVISION DS-7632NXI-K2/16P
- Hỗ trợ lên đến 32 đầu vào camera IP, “cắm và chạy” với 16 giao diện Power-over-Ethernet (PoE).
- Định dạng video: H.265+/H.265/H.264+/H.264.
- Khả năng giải mã lên đến 2 kênh @ 12MP hoặc 3 kênh @ 8MP hoặc 6 kênh @ 4MP hoặc 12 kênh @ 1080p.
- Băng thông đầu vào lên đến 256Mbps.
- Áp dụng công nghệ Hikvision Acusense để giảm thiểu nỗ lực thủ công và chi phí an ninh.
Thông số kỹ thuật
Model | DS-7632NXI-K2/16P |
Intelligent Analytics | |
AI by Device | Facial recognition, perimeter protection, motion detection 2.0 |
AI by Camera | Facial recognition, perimeter protection, throwing objects from building, motion detection 2.0, ANPR, VCA |
Facial Recognition | |
Facial Detection and Analytics | Face picture comparison, human face capture, face picture search |
Face Picture Library | Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4MB, total capacity ≤ 1 GB) |
Facial Detection and Analytics Performance | 1-ch, 8 MP |
Face Picture Comparison | 4-ch |
Motion Detection 2.0 | |
By Device | All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm |
By Camera | All channels |
Perimeter Protection | |
By Device | 2-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm |
By Camera | All channels |
Video/ Audio input | |
IP video input | 32-ch |
Incoming bandwidth | 256 Mbps |
Outgoing bandwidth | 160 Mbps |
Video/Audio output | |
HDMI Output | 1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
VGA Output | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
Audio output | 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
Two-Way Audio | 1-ch, RCA (Linear, 1 KΩ) |
Decoding | |
Decoding format | H.265/H.265+/H.264+/H.264 |
Recording resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Synchronous playback | 16-ch |
Network management | |
Remote Connection | 128 |
Network Interface | 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
Network protocols | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
PoE | |
Interface | 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
Power | ≤ 200 W |
Standard | IEEE 802.3af/at |
Auxiliary Interface | |
SATA | 2 SATA interfaces |
Capacity | Up to 10 TB capacity for each HDD |
USB interface | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 |
Alarm in/out | 4/1 |
General | |
Power supply | 100 to 240 VAC |
Consumption | ≤ 15 W (without HDD and PoE off) |
Working temperature | -10 to +55° C (14 to 131° F) |
Working humidity | 10 to 90 % |
Dimensions (W × D × H) | 385 × 315× 52 mm |
Weight (without hard disk) | ≤ 3 kg |
