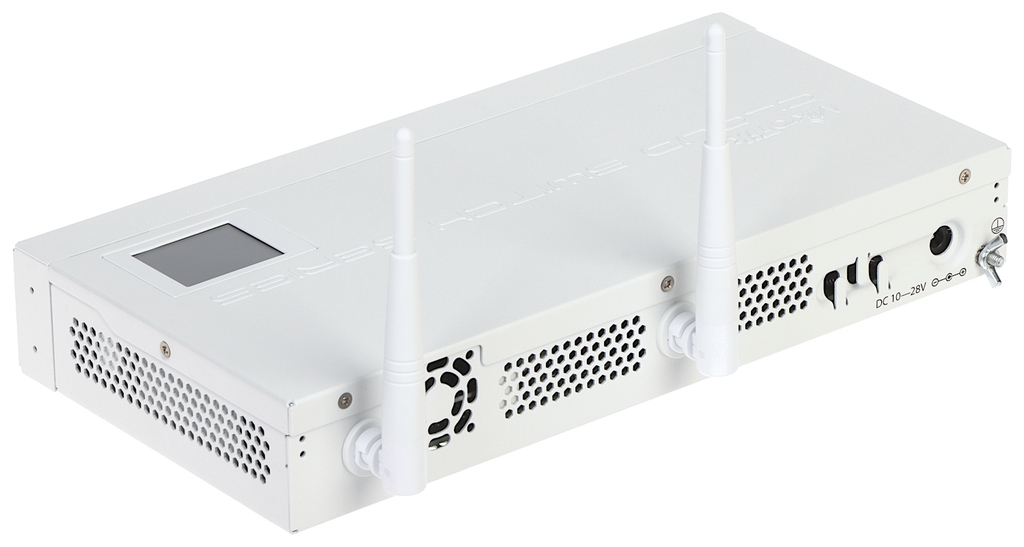

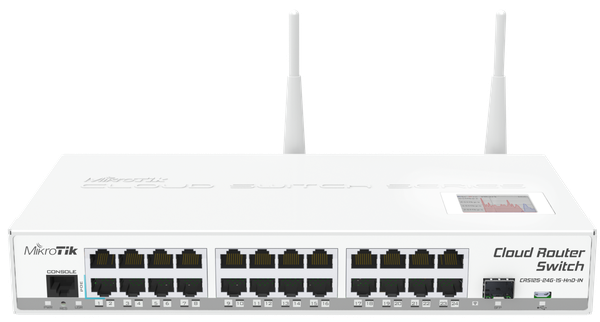

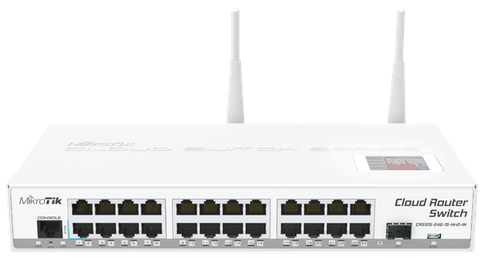

Mikrotik CRS125-24G-1S-2HnD-IN witch 24x GE, 2x SFP, LCD, Wireless, RouterOS
Thông số kỹ thuật:
| Specifications | |
| Product code | CRS125-24G-1S-2HnD-IN |
| Architecture | MIPSBE |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | 285 x 167 x 44 mm |
| RouterOS license | 5 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -30°C to 60°C |
| Powering | |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 8-28 V |
| Max power consumption | 19 W |
| FAN count | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 8-28 V |
| Wireless specifications | |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 4 |
| Wireless 2.4 GHz chip model | AR9344 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Ethernet | |
| 10/100/1000 Ethernet ports | 24 |
| Fiber | |
| SFP DDMI | Yes |
| SFP ports | 1 |
| Peripherals | |
| Serial console port | RJ45 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | microUSB type AB |
| Max USB current (A) | 1 |
| Other | |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Certification & Approvals | |
| Certification | CE, FCC, EAC, ROHS |
| IP | IP20 |
| Included parts | - 24V 1.2A power adapter - USB OTG cable |
