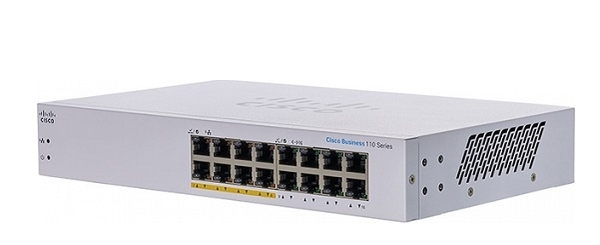

Thiết bị chuyển mạch CISCO CBS110 CBS110-16PP-EU Unmanaged 16-port GE, 8 Port support PoE with 64W power budget
CBS110-16PP-EU DATASHEET
Bảng dưới đây thể hiện tài liệu mô tả của sản phẩm CBS110-16PP-EU | Cisco CBS 110 16 Port 10/100/1000 (8x PoE)
| CBS110-16PP-EU Datasheet | |
| Performance | |
| Capacity in millions of packets per second (64-byte packets) | 23.8 mpps |
| Switching capacity | 32 Gbps |
| General | |
| Head-of-line (HOL) blocking | HOL blocking prevention |
| MAC table | 8K addresses |
| Jumbo frame | 9216 bytes |
| Quality of Service (QoS) | 802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR) |
| Loop detection | Helps discover loops in the network to avoid broadcast storms |
| Cable diagnostics | Quickly identify and troubleshoot network cable faults and/or shorts |
| Media-dependent interface | Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X) |
| Standards | IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet |
| Hardware | |
| Total system ports | 16 Gigabit Ethernet |
| RJ-45 ports | 16 Gigabit Ethernet |
| Number of ports that support PoE | 8 |
| Power dedicated to PoE | 64W |
| LEDs | Power, link/activity (cable diagnostics, loop detection), Gigabit, PoE, Max PoE. |
| Cabling type | Category 5e or better |
| Mounting options | Desktop, wall-mount or rack mount |
| Physical security lock | Kensington lock slot |
| Flash | 16MB |
| CPU | 400MHz ARM |
| CPU memory | 128MB |
| Packet buffer | 2 Mbit |
| Environmental | |
| Unit dimensions (W x D x H) | 279 x 170 x 44 mm |
| Unit weight | 1.30 kg |
| Power | 110-240VAC, 50-60 Hz, internal, universal |
| Green (power efficiency) | Supports IEEE 802.3az on all copper Gigabit Ethernet ports |
| Compliance/certifications | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Operating temperature | 0° to 40°C |
| Storage temperature | –20° to 70°C |
| Operating humidity | 10% to 90%, relative, noncondensing |
| Storage humidity | 5% to 90%, relative, noncondensing |
| Power consumption (worst case) | |
| System power consumption | 110V=11.16W 220V=11.41W |
| Power consumption (with PoE) | 110V=80.28W 220V=80.38W |
| Heat dissipation (BTU/hr) | 274.27 |
| Acoustic noise and Mean Time Between Failures (MTBF) | |
| Fan (number) | Fanless |
| MTBF at 25°C (hours) | 1,971,811 |
Xem thêm tài liệu về Cisco Business 110 Series: Cisco CBS110 Datasheet
MODULE QUANG HỖ TRỢ CHO SWITCH CISCO CBS110-16PP-EU
Bảng dưới đây cho thấy danh sách các thiết bị Module quang hỗ trợ cho sản phẩm CBS110-16PP-EU
| SKU | Media | Speed | Maximum distance |
| MGBSX1 | Multimode fiber | 1000 Mbps | 500 m |
| MGBLX1 | Single-mode fiber | 1000 Mbps | 10 km |
| MGBLH1 | Single-mode fiber | 1000 Mbps | 40 km |
| MGBT1 | UTP cat 5e | 1000 Mbps | 100 m |
